TVR200 DC Contactor

200A High Voltage DC Relay

FEATURES

1，200A high voltage DC relay

2, 1000VDC ,750VDC High load voltage

3，ceramic seal structure ，combined with magnetic blow-out.

4，With auxiliary contact，12VDC 24VDCoptions

5，dimension：96*45*82mm


DOWNLOAD PDF

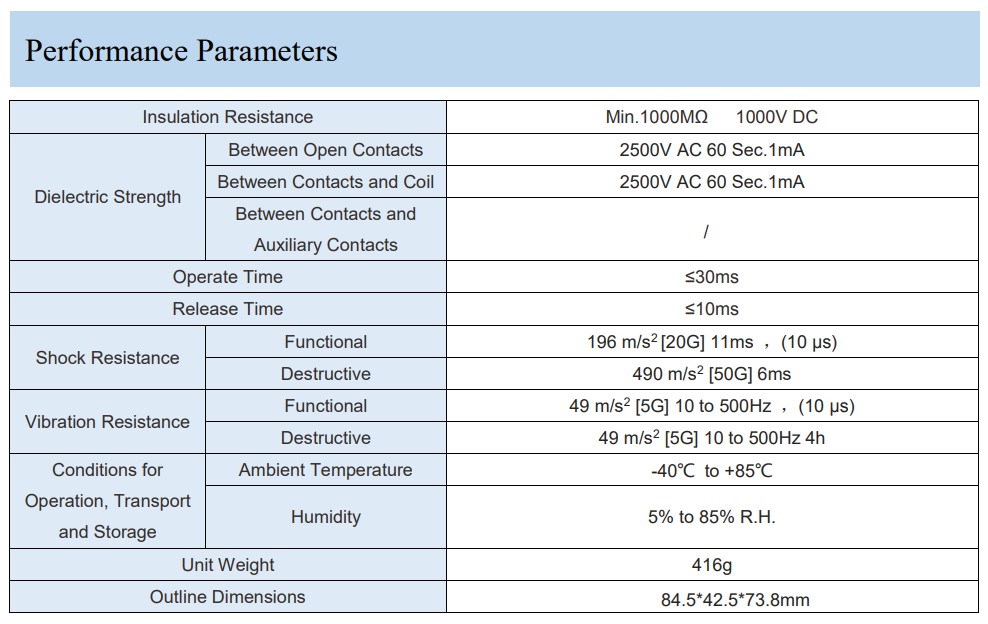

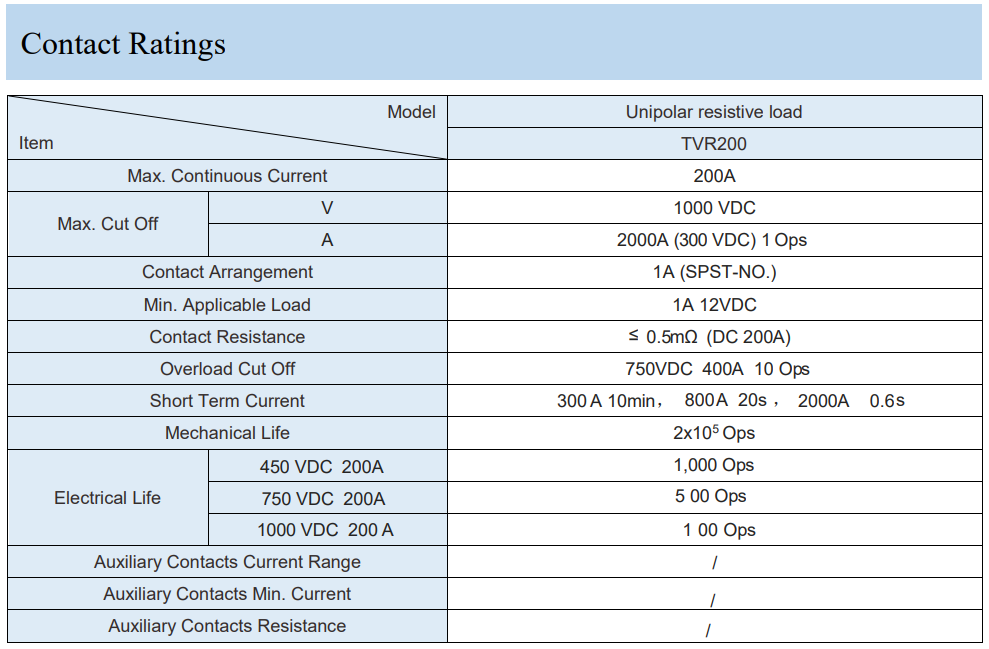

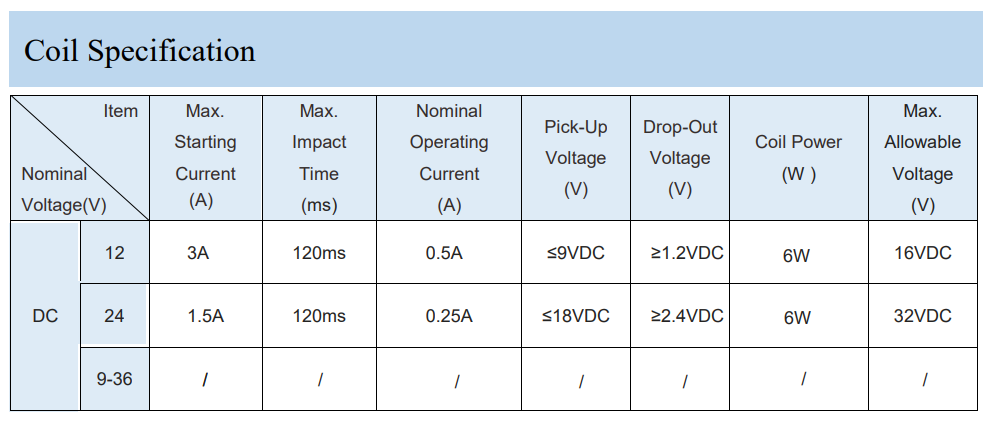

  • Description

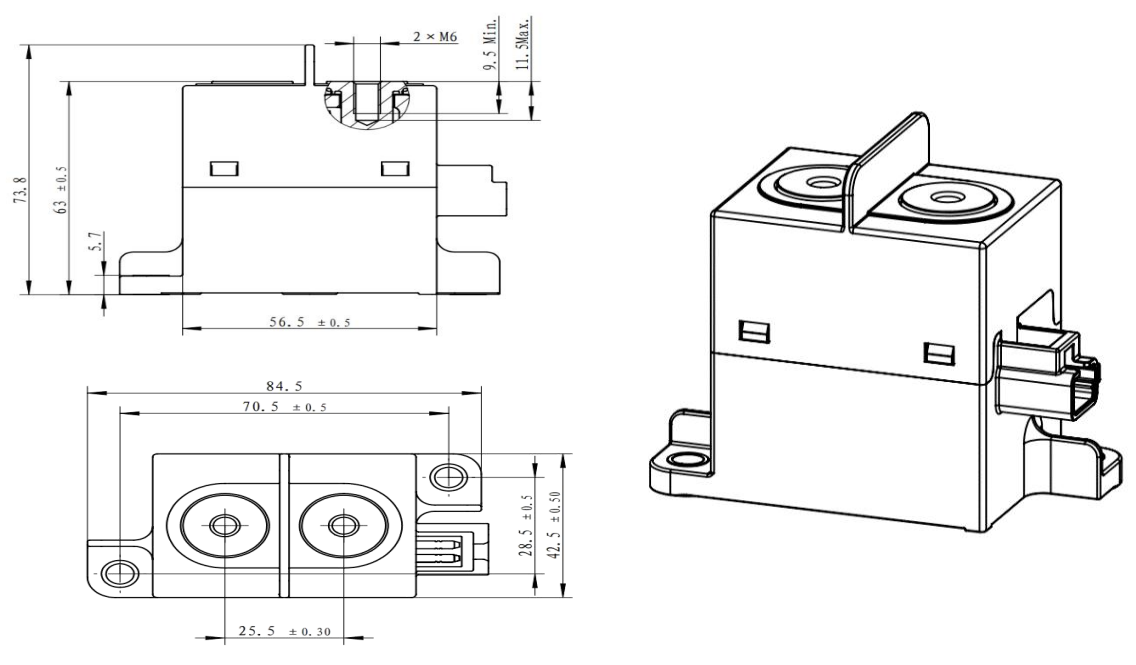

  • Overall dimension

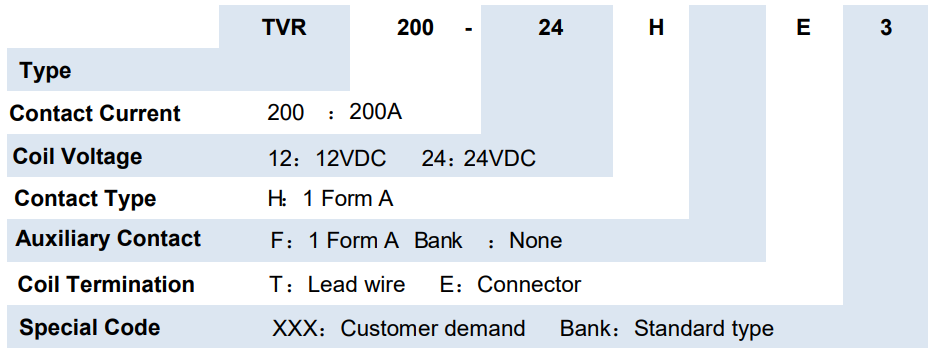

  • Ordering Information
