TVR400 DC Contactor

400A High Voltage DC Relay

FEATURES

1，400A high voltage DC relay

2, 1000VDC High load voltage

3，ceramic seal structure ，combined with magnetic blow-out.

4，With auxiliary contact，12VDC 24VDC options

5，dimension：112*65.1*78.7mm


DOWNLOAD PDF

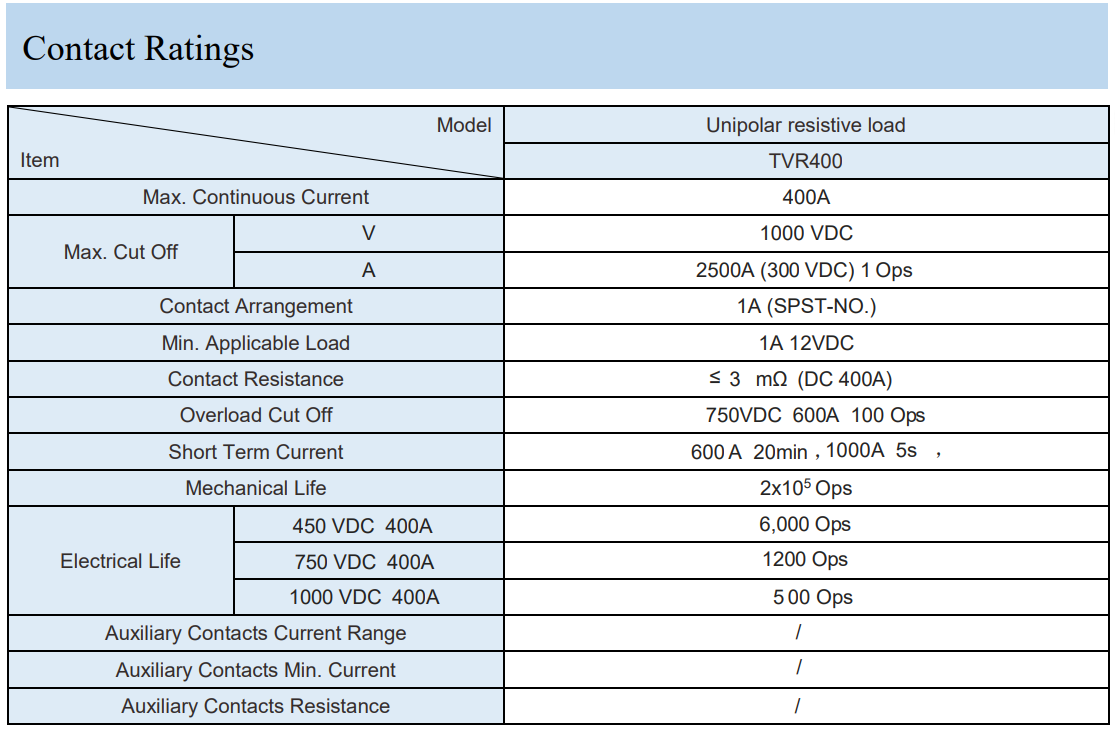

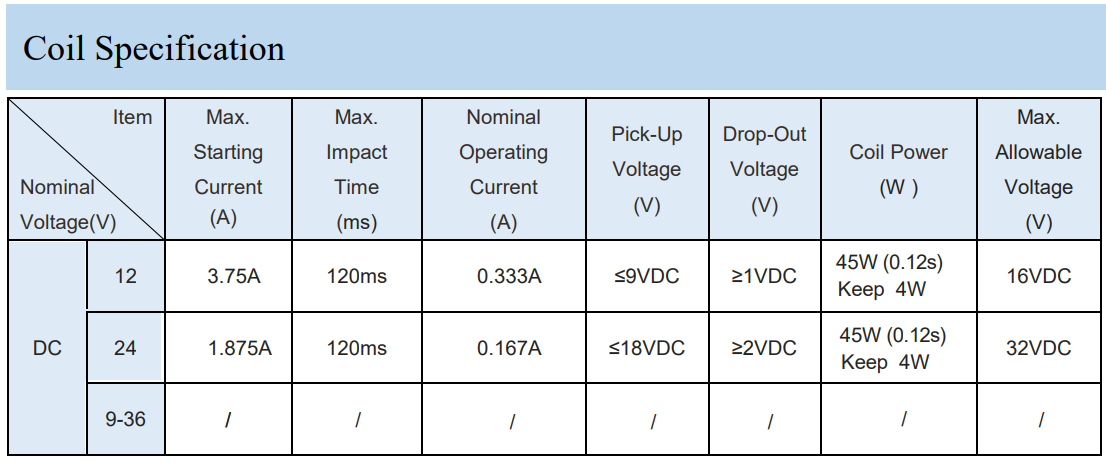

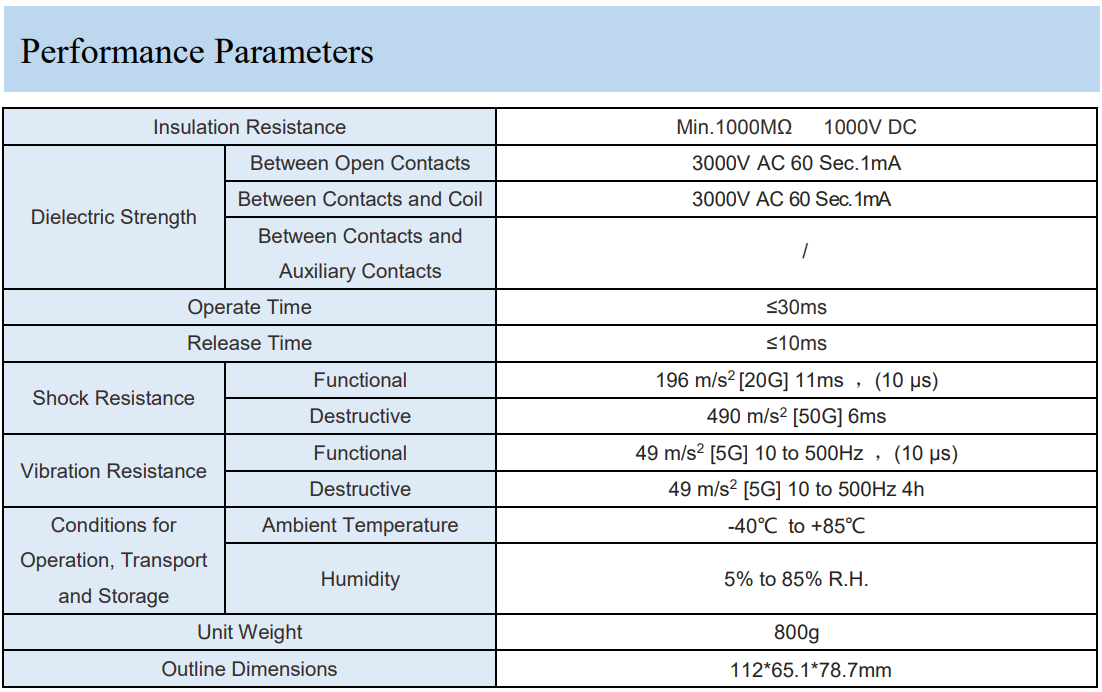

  • Description

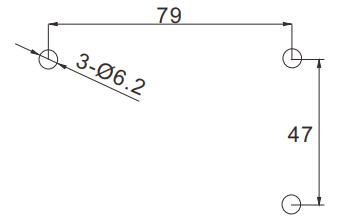

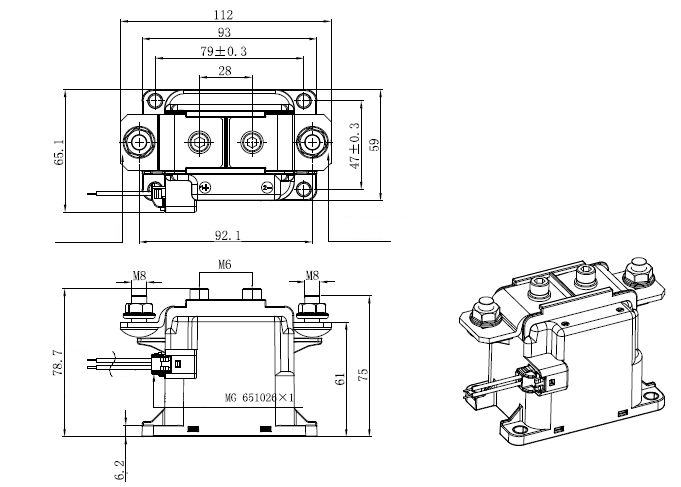

  • Overall dimension

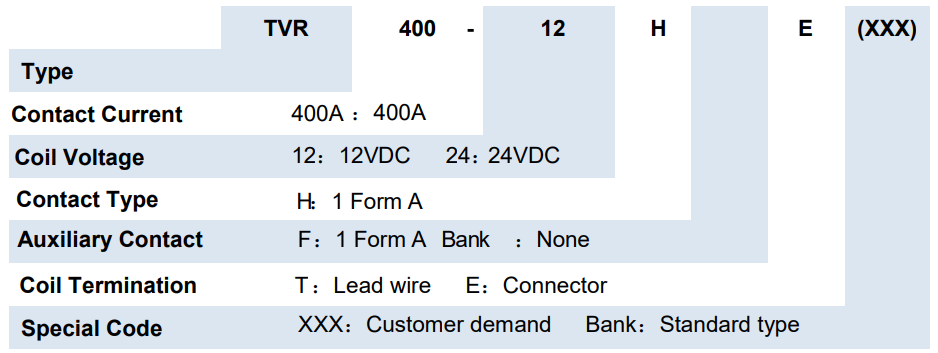

  • Ordering Information







    image.png            image.png
