TVR20-1500VDC

20A High Voltage DC Relay

FEATURES

1，20A high voltage DC relay

2, 1500VDC High load voltage

3，ceramic seal structure ，combined with magnetic blow-out.

4，With auxiliary contact，12VDC 24VDC options

5，dimension：78*39.2*46.1mm


DOWNLOAD PDF

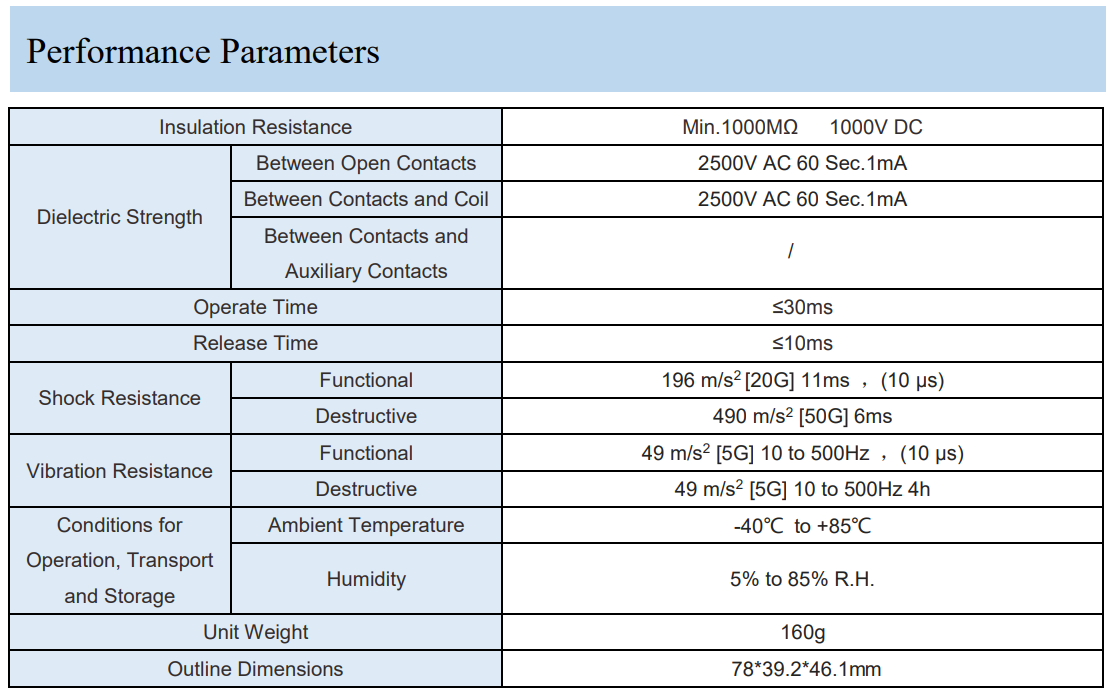

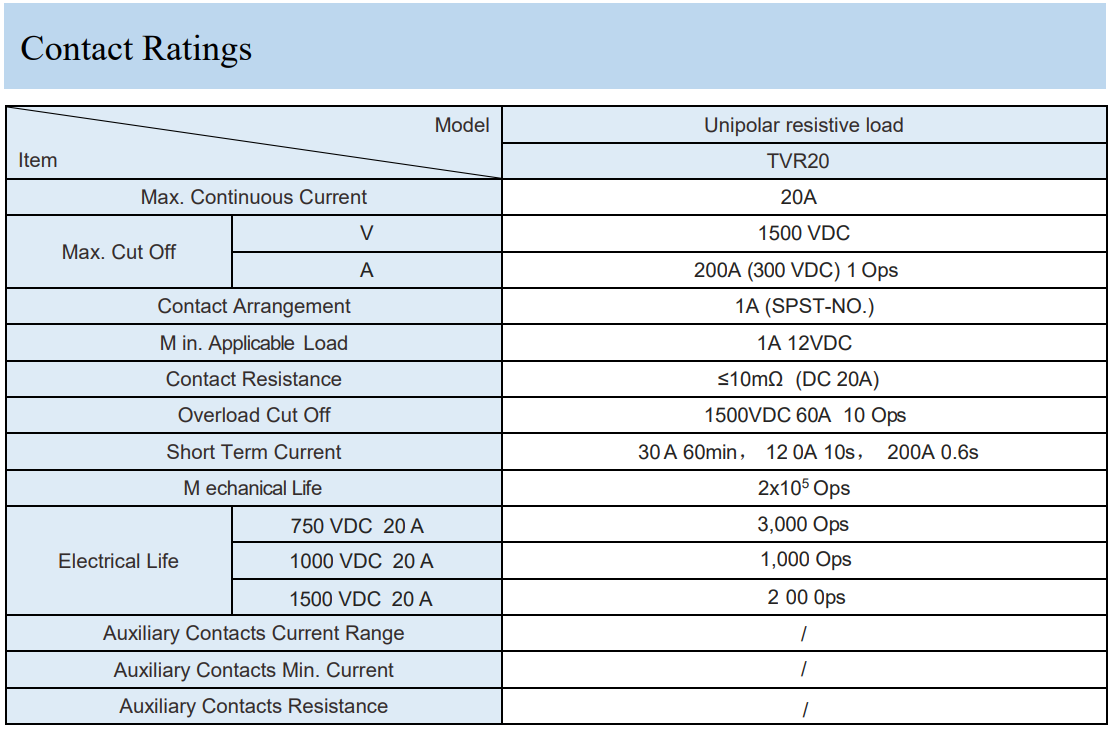

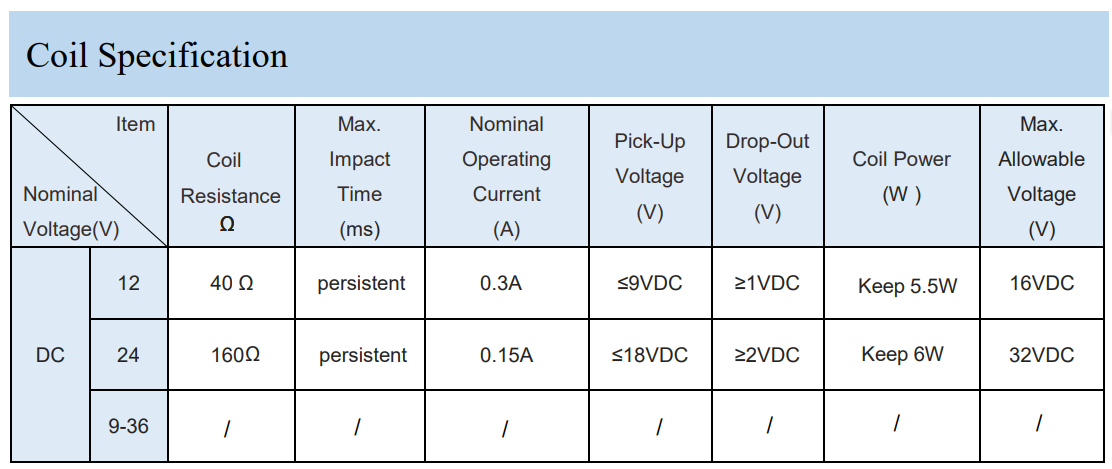

  • Description

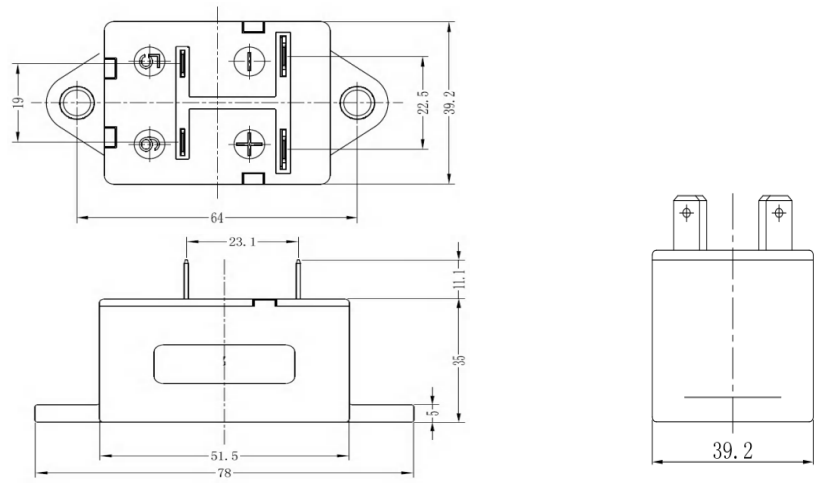

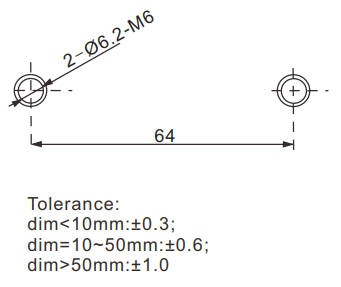

  • Overall dimension

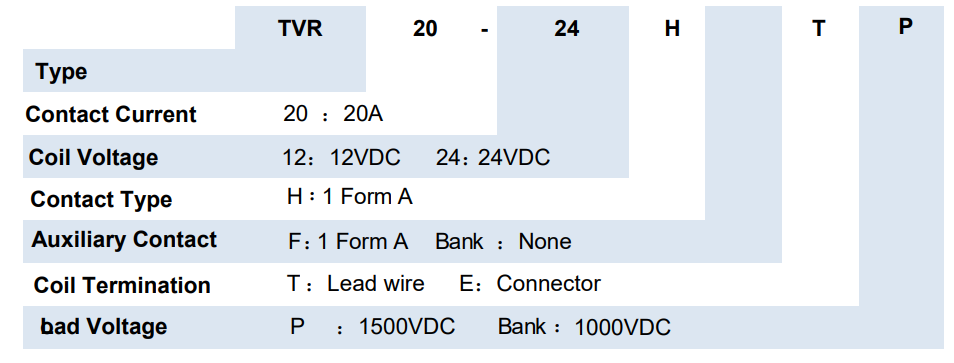

  • Ordering Information









    image.png           image.png
