TVR40-1500VDC

40A High Voltage DC Relay

FEATURES

1，40A high voltage DC relay

2, 1500VDC High load voltage

3，ceramic seal structure ，combined with magnetic blow-out.

4，With auxiliary contact，12VDC 24VDC options

5，dimension：72*32.6*57.7mm


DOWNLOAD PDF

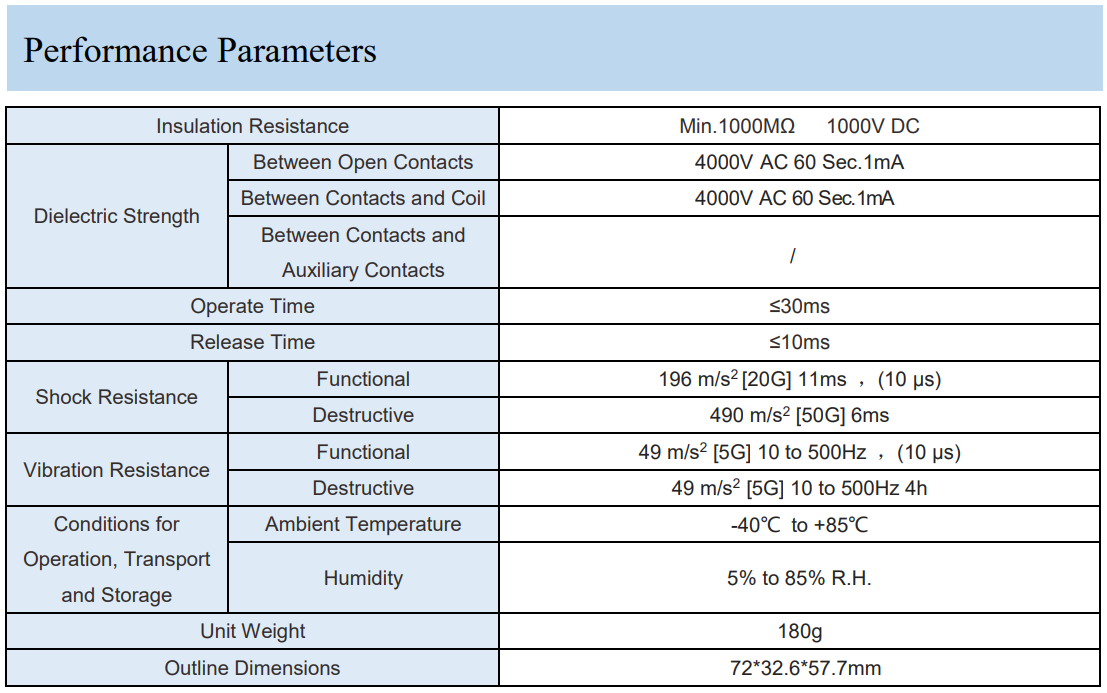

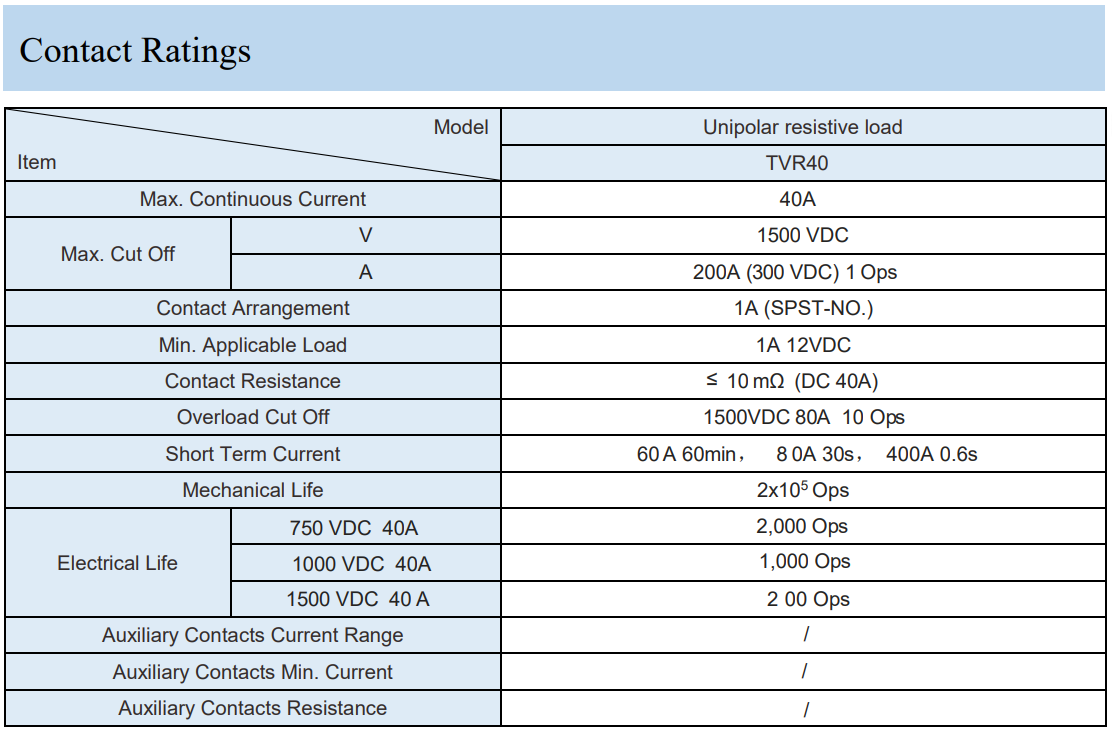

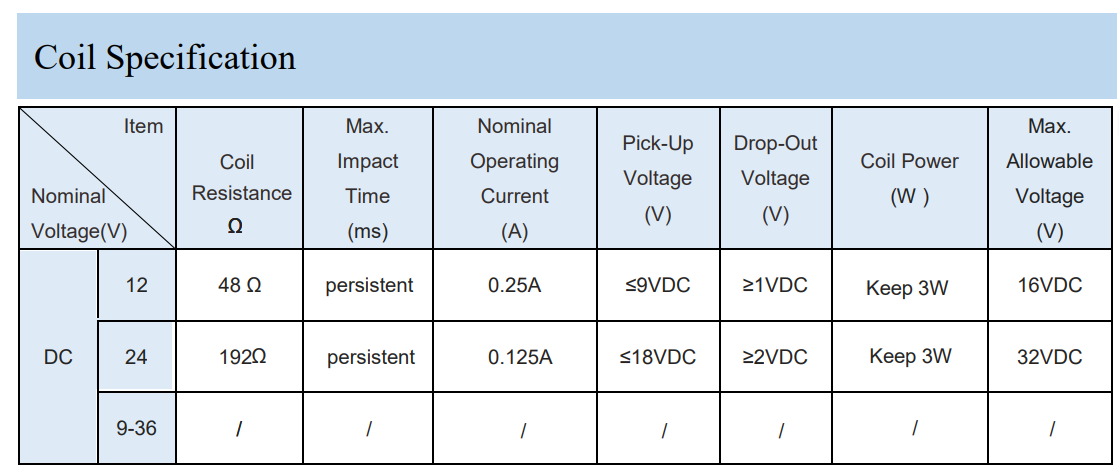

  • Description

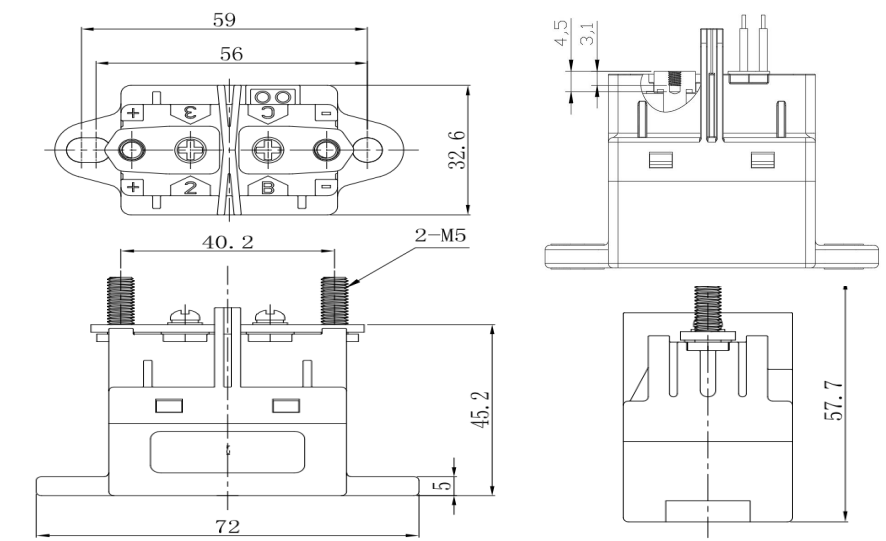

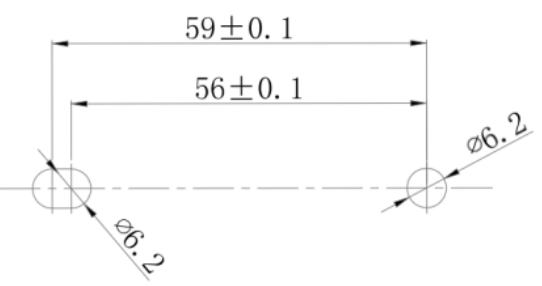

  • Overall dimension

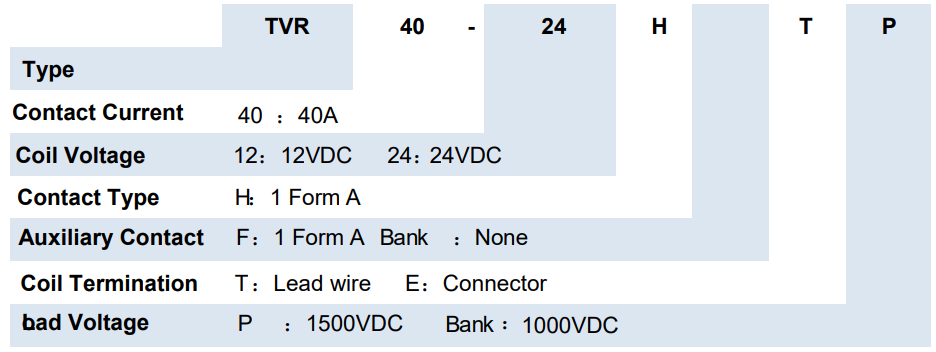

  • Ordering Information







    image.png           image.png
