TVR250-1500VDC

250A High Voltage DC Relay

FEATURES

1，250A high voltage DC relay

2, 1500VDC High load voltage

3，ceramic seal structure ，combined with magnetic blow-out.

4，With auxiliary contact，12vdc 24vdc options

5，dimension：104*70*107.9mm


DOWNLOAD PDF

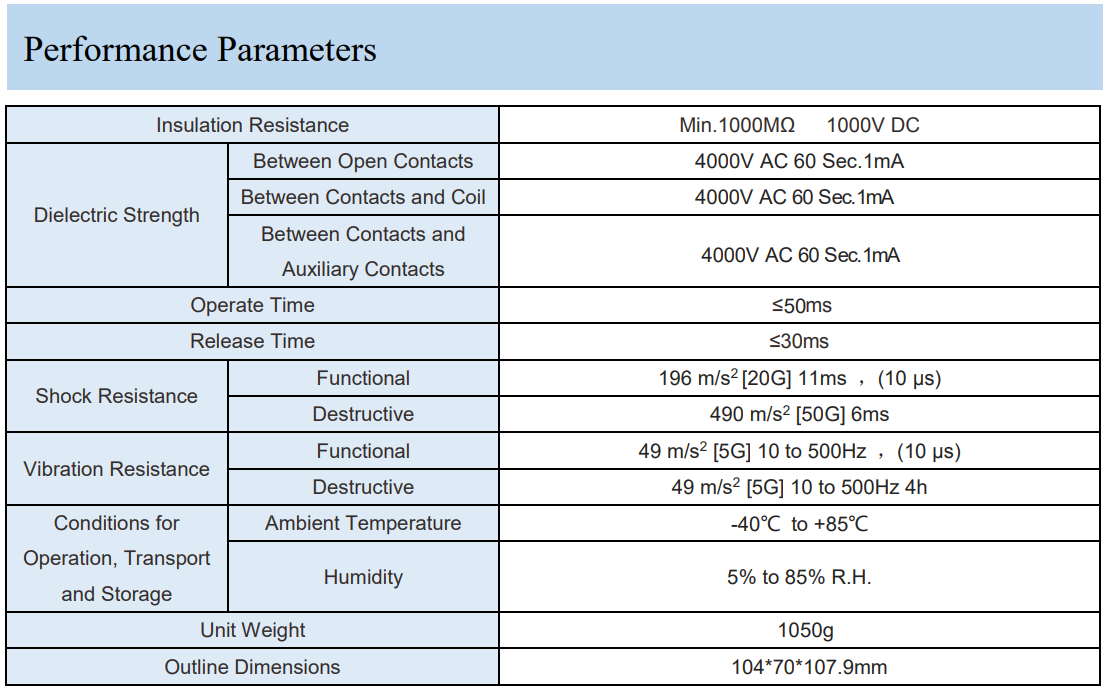

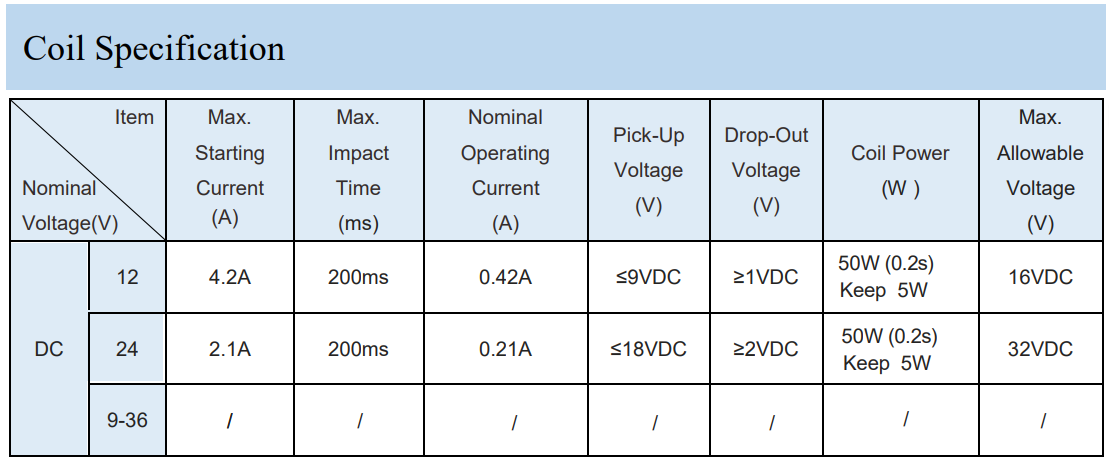

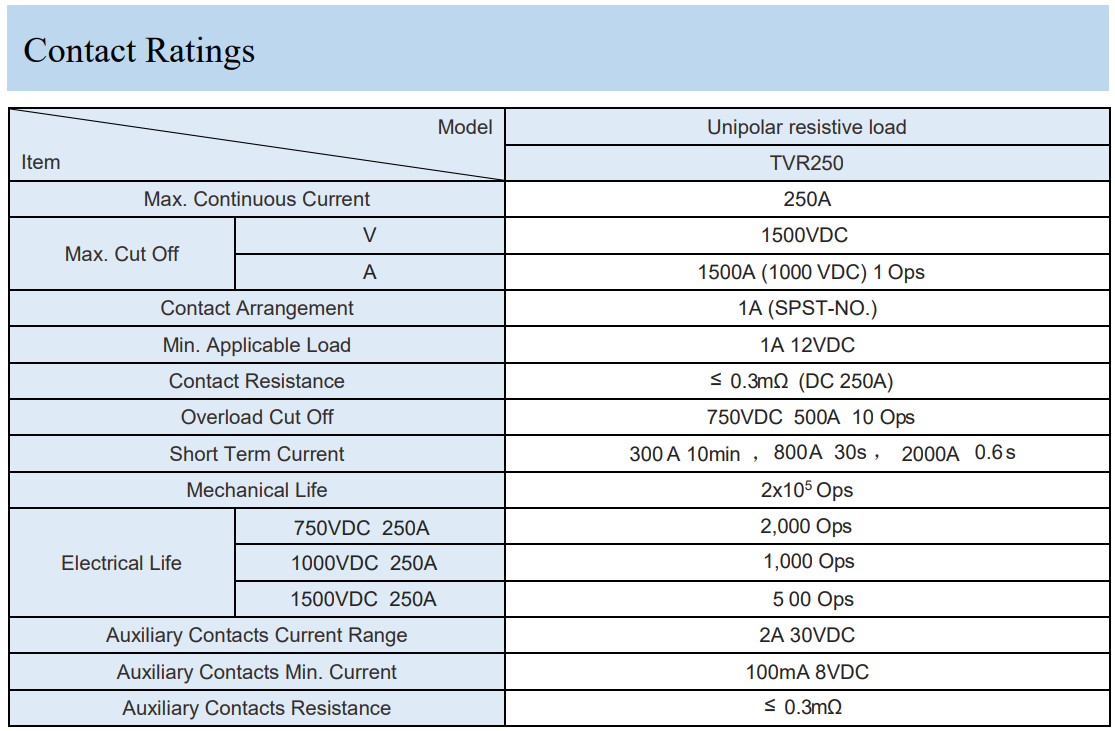

  • Description

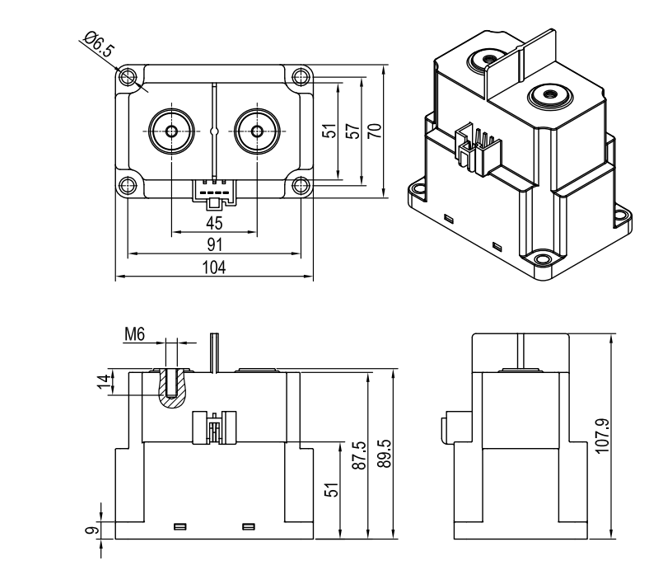

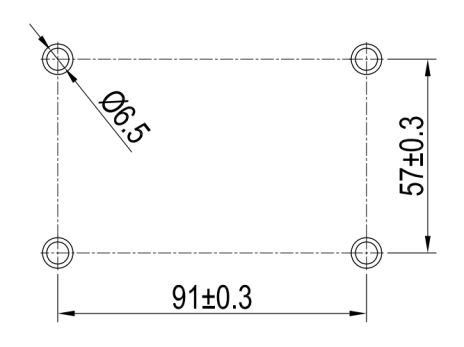

  • Overall dimension

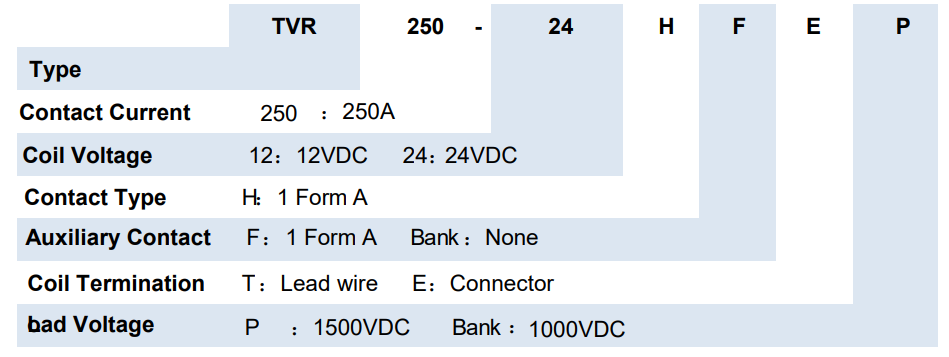

  • Ordering Information








    image.png           image.png
