HTV20 DC Contactor

20A High Voltage DC Relay

FEATURES

1，20A high voltage DC relay

2, 1000VDC High load voltage

3，ceramic seal structure ，combined with magnetic blow-out.

4，With auxiliary contact，12VDC 24VDCoptions

5，dimension44*30*41.6mm(QC) 44*30*35.7mm(PCB)


DOWNLOAD PDF

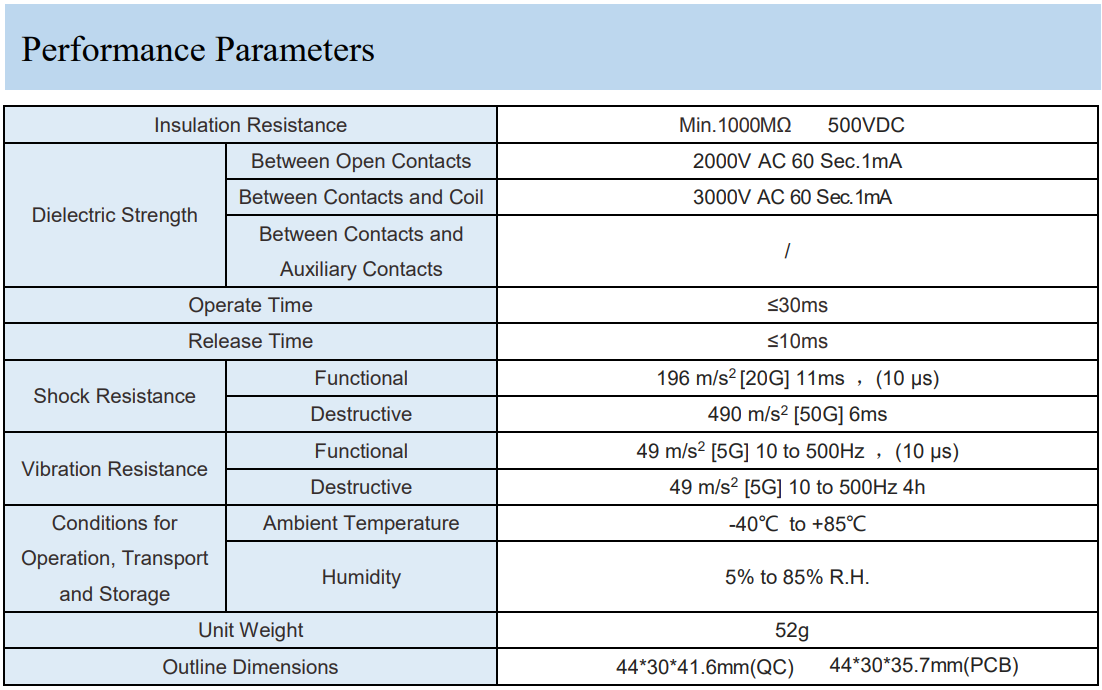

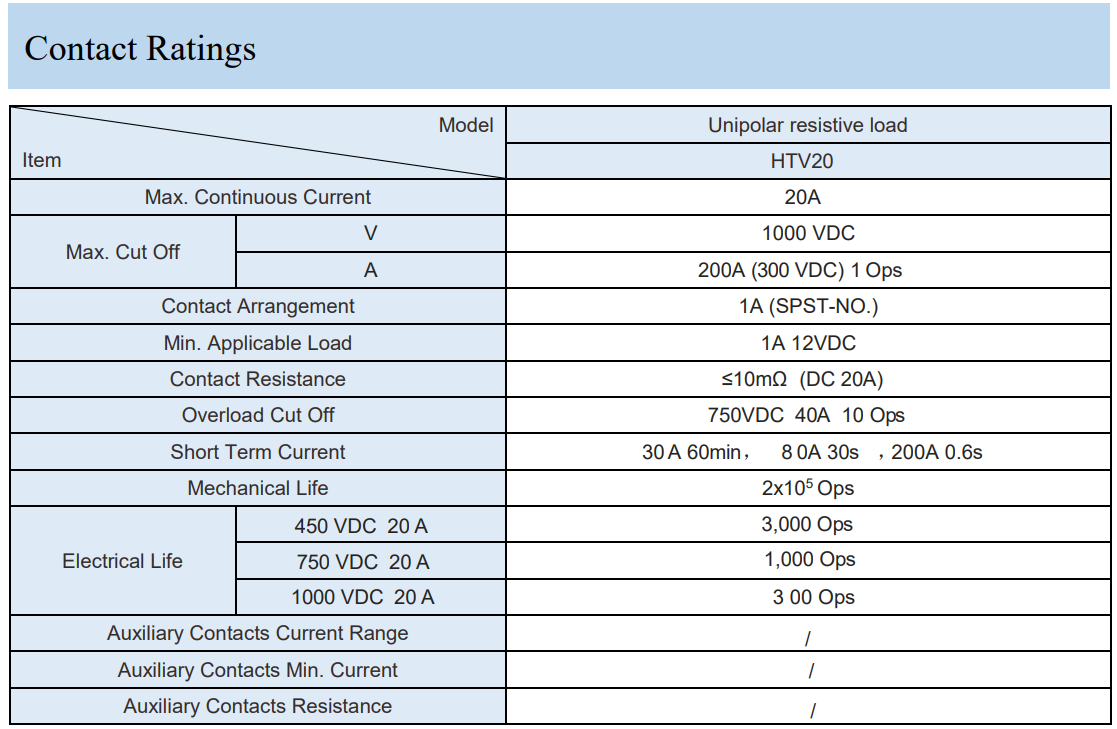

  • Description

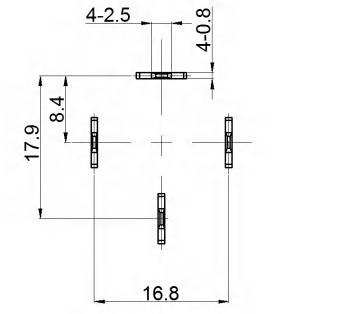

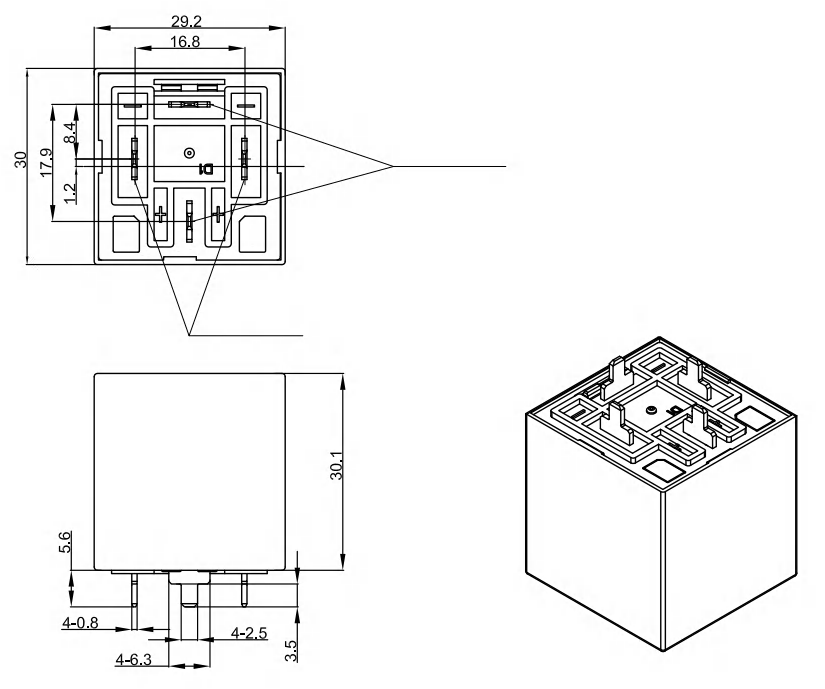

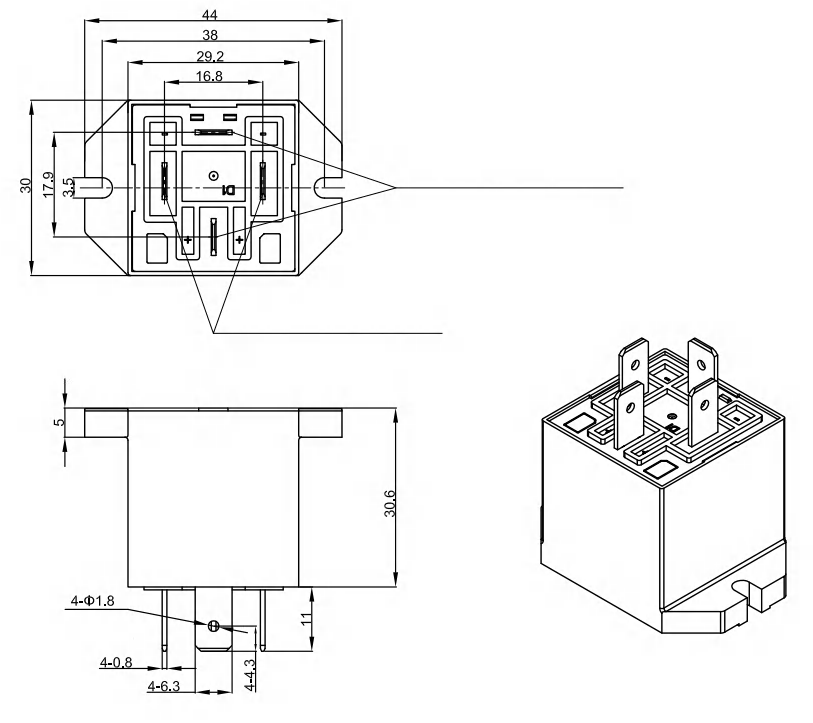

  • Overall dimension

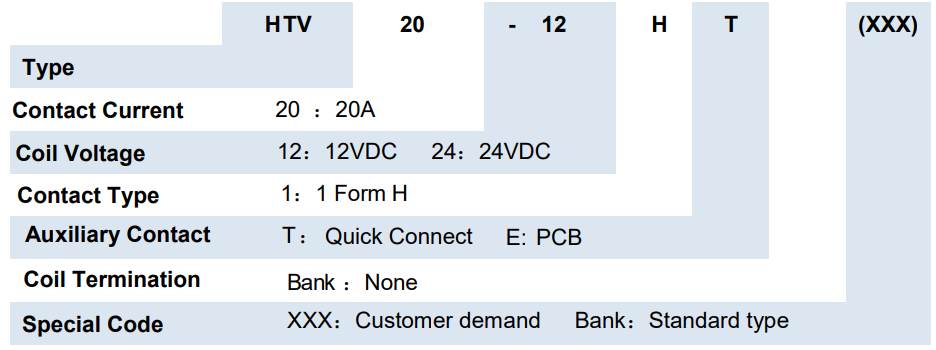

  • Ordering Information











Go back
