HTV40 DC Contactor

40A High Voltage DC Relay

FEATURES

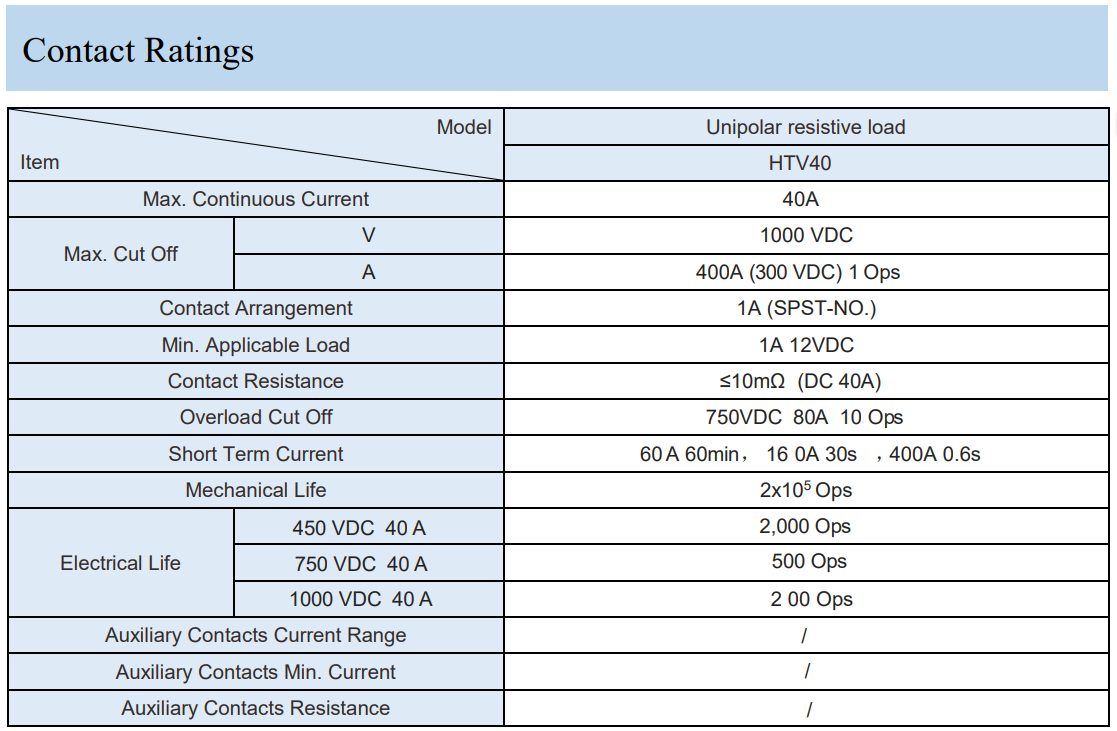

1，40A high voltage DC relay

2, 1000VDC High load voltage

3，ceramic seal structure ，combined with magnetic blow-out.

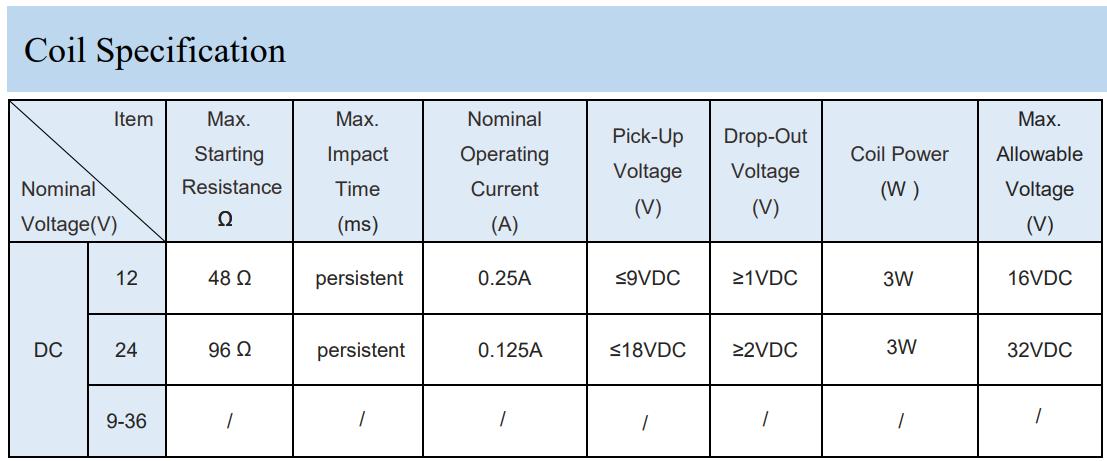

4，With auxiliary contact，12VDC 24VDC options

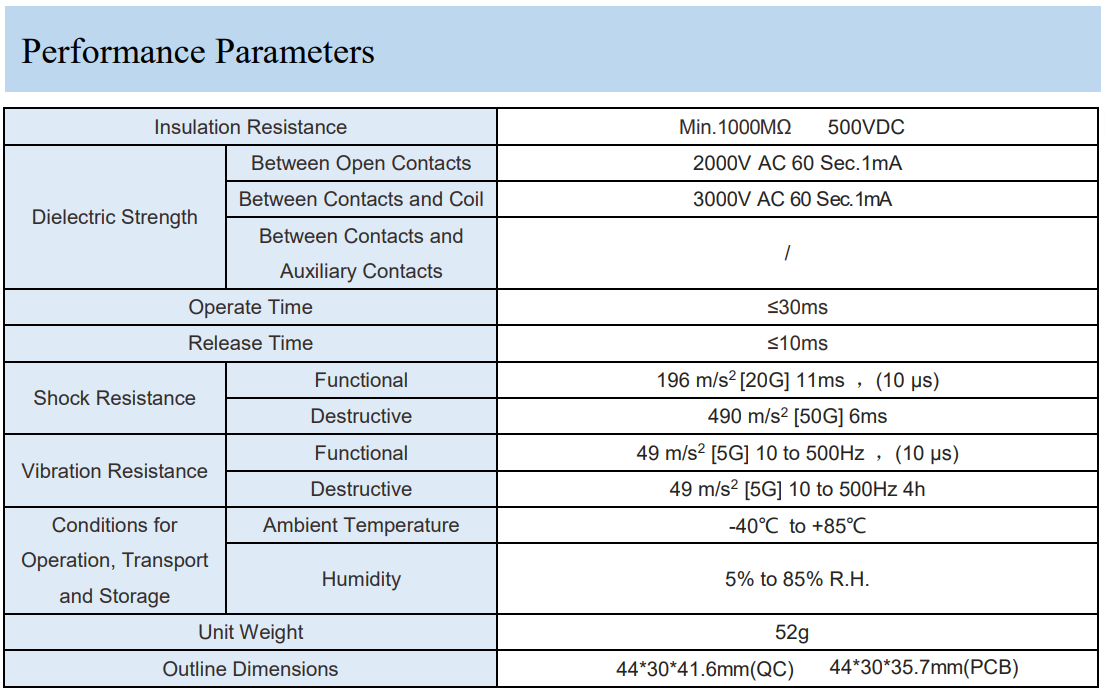

5，dimension：44*30*41.6mm(QC) 44*30*35.7mm(PCB)


DOWNLOAD PDF
  • Description
  • Overall dimension

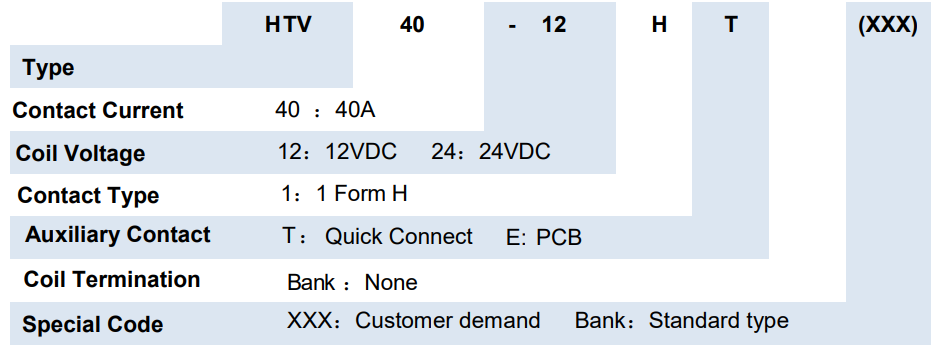

  • Ordering Information
