YHRB-M

16A Relay

FEATURES

1.16A switching capability ,Width ：10mm
2.possess 250VAC , Certificates ： UL
3.Dlelectric strength 4000VA.(between coil and contacts)
4.1Form A configurations available
5.Wash tight and flux proofed types available

Description

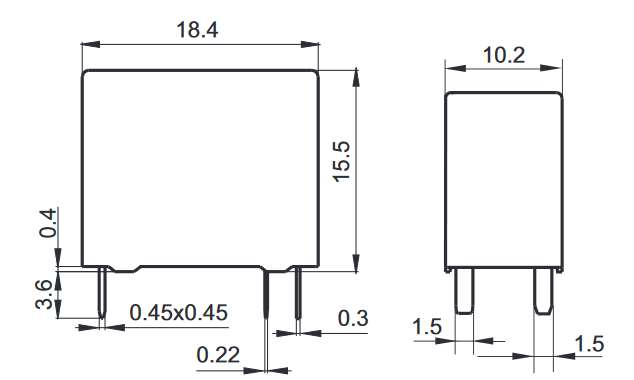

Overall dimension

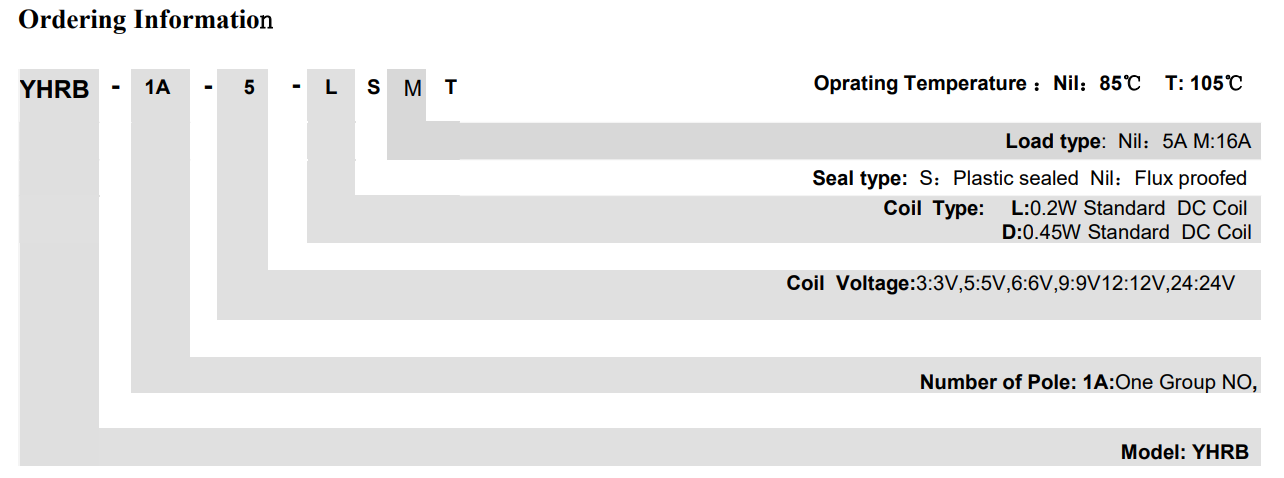

Ordering Information

Contact data

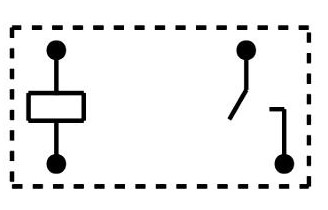

Contact Arrangement							1A(1H)
Contact Material							Ag Alloys
Conatct Rating(Resistive)							16A 30VDC/16A 250VAC
Max.Switching Power							4000VA
Max.Switching Voltage							277VAC
Max.Switching Current							16A
Contact Resistance							100mΩ （1A24VDC）
Operation Life			Electrical				2×10⁴ ops
			Mechanical				1×10⁷ops

Coil Parameter
Rated coil power				Standard：450mW
Coil voltage VDC	Pick up Voltage VDC	Release voltage VDC			Max voltage VDC			Nominal Current mA	Coil Resistance Ω（1±10％）	Coil power consumption W
5	75% Maximum	10% Minimum			130%			91	55	0.45
6								75	80	0.45
9								50	180	0.45
12								37.5	320	0.45
24								18.8	1280	0.45

Rated coil power				Standard：200mW
Coil voltage VDC	Pick up Voltage VDC	Release voltage VDC			Max voltage VDC			Nominal Current mA	Coil Resistance Ω（1±10％）	Coil power consumption W
5	75% Maximum	10% Minimum			130%			40	125	0.2
6								33.3	180	0.2
9								22.5	400	0.2
12								16.7	720	0.2
24								8.3	2800	0.2

Operation condition
Insulation Resistance	1000M
Dielectric Strength
Between Contacts	1000VAC
Between Contacts and Coil	2500/4000VA
Action time (rated voltage)	≦10ms
Release time (rated voltage)	≦10ms
Shock Resistance	98m/s2 980m/s2
Vibration Resistance	10Hz~55Hz 1.5mm Double amplitude 1.5mm
Terminals Strength	6N
Solderability	280±10℃ 2±1s℃
Ambient Temperature	‐40~85℃
Relative Humidity	5%~85% RH
Mass	~ 6.5g

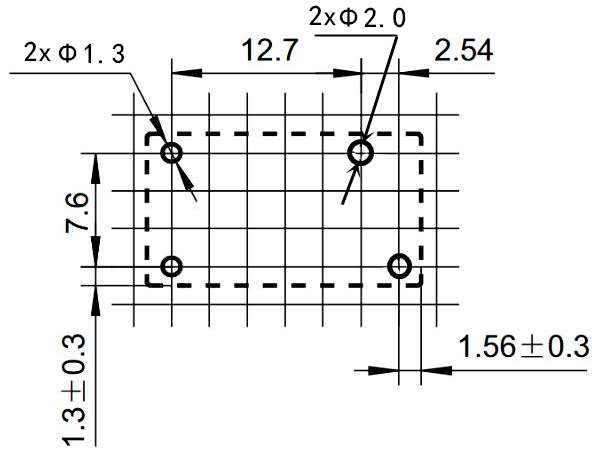

Dimension
