YHRM2

16A Relay

FEATURES

1.16A switching capability
2.possess 250VAC , TUV CQC
3.Dlelectric strength 5kv.(between coil and contacts)
4.1Form C ＆1Form A configurations available
5，dimension：2912.520.5mm

Description

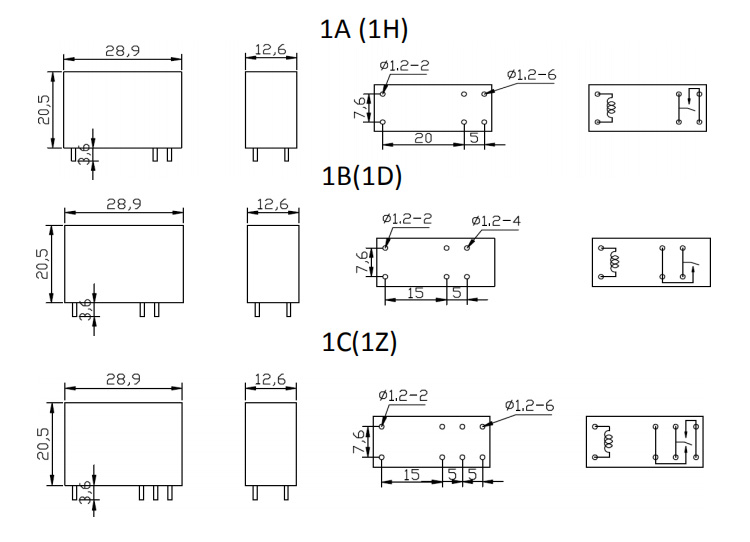

Overall dimension
Ordering Information

Contact data
Contact Arrangement		1A(1H)	1B(1D)	1C(1Z)
Contact Material		A g Alloys
Conatct Rating(Resistive)		16A 250VAC/28VDC	16A 250VAC/28VDC	NO:16A NC:10A
Max.Switching Power		4000VA
Max.Switching Voltage		250VAC
Max.Switching Current		16A
Contact Resistance		100mΩ（1A 24VDC）
Operation Life	Electrical	1×10⁵ops
	Mechanical	1×10⁷ ops

Coil Parameter
Rated coil power			Sensitive: 540mW
Sensitive type
Coil voltage VDC	Pick up Voltage VDC	Release voltage VDC		Max voltage VDC	Nominal Current （mA）	Coil Resistance Ω（1±10％）	Coil power consumption W
5	75% Maximum	10% Minimum		130%	108	46	0.54
6					88	68	0.54
9					60	150	0.54
12					44	268	0.54
24					22	1068	0.54
36					15	2400	0.54
48					12	4268	0.54

Operation condition
Insulation Resistance		1000M
Between Contacts		1000VAC
Between Contacts and Coil		5000 VAC
Action time (rated voltage)		≦15ms
Release time (rated voltage)		≦10ms
Shock Resistance		98m/s2 980m/s2
Vibration Resistance		10Hz~55Hz 1.5mm 、 Double amplitude 1.5mm
Terminals Strength		6N
Solderability		280±10℃	2±1s℃
Ambient Temperature		‐40~85℃
Relative Humidity		5%~85% RH
Mass		~ 13 g

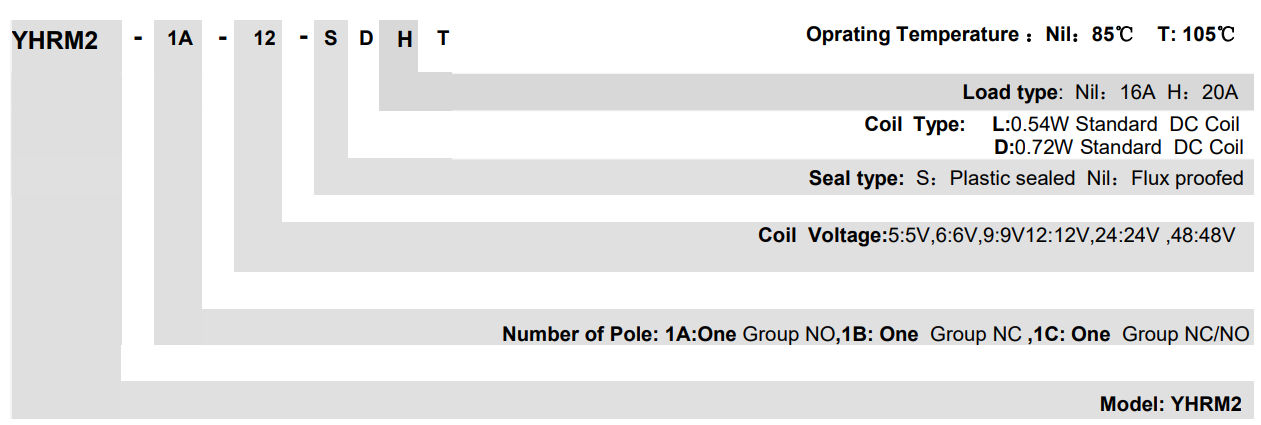

Ordering Information
