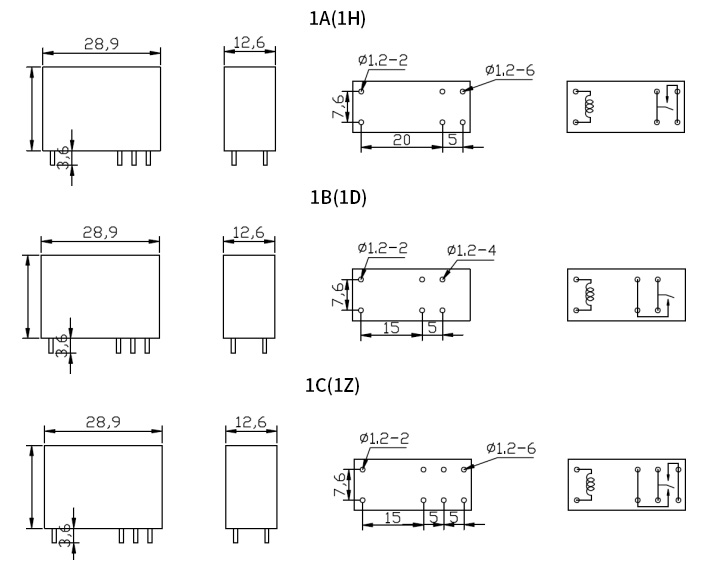

Contact Arrangement

1A(1H)

1B(1D)

1C(1Z)

Contact Material

A g  Alloys

Conatct Rating(Resistive)

16A/250VAC/28VDC

16A/250VAC/28VDC

NO:16A NC:10A

Max.Switching Power

4000VA

Max.Switching Voltage

250VAC

Max.Switching Current

16A

Contact Resistance

100mΩ（1A24VDC）

Operation Life

Electrical

1×10⁵ops

Mechanical

1×107ops

Rated coil power

Sensitive： 250mW　Standard： 400mW

Sensitive type

Coil voltage
VDC

Pick up Voltage VDC

Release voltage VDC

Max voltage VDC

Nominal Current
（mA）

Coil Resistance Ω（1±10％）

Coil power consumption W

5

75%
Maximum

10%
Minimum

130%

50

100

0.25

6

41.7

144

0.25

9

27.7

325

0.25

12

20.8

576

0.25

24

10.4

2304

0.25

36

6.9

5217

0.25

48

5.2

9216

0.25

Standard type

Coil voltage VDC

Release voltage VDC

Max voltage VDC

Nominal Current
（mA）

Coil Resistance
Ω（1±10％）

Coil power consumption
W

5

75%
Maximum

10%
Minimum

130%

80.6

62

0.40

6

66.7

90

0.40

9

44.6

202

0.40

12

33.3

360

0.40

24

16.7

1440

0.40

36

11.1

3240

0.40

48

8.7

5520

0.40

Insulation Resistance

1000M

Dielectric Strength

Between Contacts

1000VAC

Between Contacts and Coil

5000 VAC

Action time (rated voltage)

≦15ms

Release time (rated voltage)

≦10ms

Shock Resistance

98m/s2 980m/s2

Vibration Resistance

10Hz~55Hz 1.5mm Double amplitude 1.5mm

Terminals Strength

6N

Solderability

280±10℃

2±1s℃

Ambient Temperature

‐40~85℃

Relative Humidity

5%~85% RH

Mass

~ 13 g
